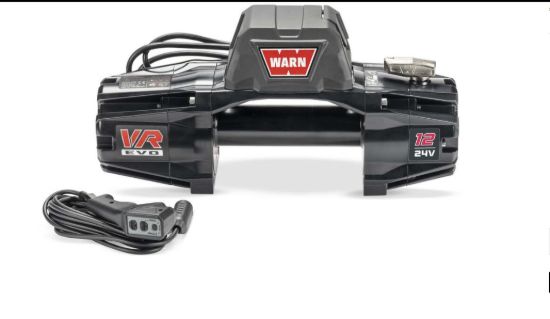

VR EVO 12 - 12,000 lbs Winch With Wireless Remote, Base Kit, 24V

The WARN VR EVO 12 24V Winch is a robust recovery solution designed for heavy-duty applications, offering a 12,000-pound (5443 kg) pulling capacity. This winch is ideal for 3/4 and 1-ton pickups and large-frame rigs requiring substantial pulling power. ​ Key Features: High-Performance Motor and Gear Train: Equipped with a 24V DC series-wound motor and a 3-stage planetary gear train with a 218:1 gear ratio, delivering faster line speeds under load with lower amp draw. ​ IP68-Rated Waterproof Construction: Ensures protection against water and dust ingress, maintaining reliable performance in harsh environments. ​ Albright® Contactor: Features a high-performance Albright contactor for maximum reliability in electrical controls. ​ 2-in-1 Remote Control: Includes a hand-held corded remote with an 11.5-foot (3.5 m) lead, providing flexibility and ease of use during winching operations. ​ Durable Construction: Built with a one-piece cast-aluminum tie-plate for added strength and durability. ​ Specifications: Rated Line Pull: 12,000 lbs (5443 kg)​ Motor: 24V DC, series-wound​ Gear Train: 3-stage planetary​ Gear Ratio: 218:1​ Clutch (Freespooling): Rotating ring gear clutch​ Brake: Spring brake​ Drum Diameter/Length: 2.5 in / 9.0 in (6.73 cm / 23 cm)​ Weight: Approximately 56 lbs (25.5 kg) shipping weight​ Rope: Supports a maximum rope diameter of 3/8 in (9.5 mm) with a minimum breaking strength of 13,200 lbs (5987 kg)​ Recommended Battery: 650 CCA minimum for winching​ Battery Leads: 0.98 in x 6.5 ft (25 mm x 2 m)​ Finish: Powder coating over primer undercoating​ Winch Dimensions: 21 in L x 6.3 in D x 10.1 in H (534 mm L x 160.5 mm D x 256 mm H)​ Mounting Bolt Pattern: 10.0 in x 4.5 in (254 mm x 114.3 mm)​ Performance Data (First Layer of Drum): No Load: Line speed of 22 ft/min (6.7 m/min) with a motor current draw of 36 amps​ At 2,000 lbs (910 kg) Load: Line speed of 13 ft/min (4.0 m/min) with a motor current draw of 69 amps​ At 4,000 lbs (1810 kg) Load: Line speed of 11 ft/min (3.4 m/min) with a motor current draw of 100 amps​ At 6,000 lbs (2720 kg) Load: Line speed of 8.7 ft/min (2.7 m/min) with a motor current draw of 131 amps​ At 8,000 lbs (3630 kg) Load: Line speed of 7.4 ft/min (2.3 m/min) with a motor current draw of 161 amps​ At 10,000 lbs (4536 kg) Load: Line speed of 6.3 ft/min (1.9 m/min) with a motor current draw of 188 amps​ At 12,000 lbs (5440 kg) Load: Line speed of 5.1 ft/min (1.6 m/min) with a motor current draw of 206 amps​ These specifications highlight the winch's capability to maintain consistent performance across various load conditions.
