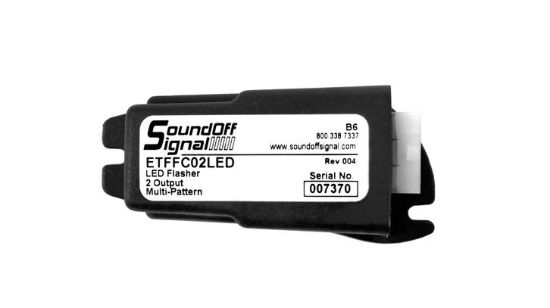

LED Light Flasher, 8 Multi Flashing Patterns

ELECTRICAL SPECIFICATIONS - Input Voltage Range +8 Vdc to +30 Vdc - Output Drive Current 3 Amps per Output - Operating Temperature -40 C to +85 C - Flash Patterns Inter-Cycle, Warp, Double, Quad, Quint, E-Pattern, Q Switch, Power Pulse, ETM - Output Drive Method High-side switched - Pattern Control Method Wire Matrix (5 wires, 2 head-control, 3-pattern control) - Standby Current - Reverse Polarity Protection: Yes (with inline fuse) - Short Circuit Protection: Yes - Thermal Protection: Yes DO NOT connect more than a 3 amp load to the output. Doing so will shut the unit down to prevent damage to the Flasher. Please visit http://sirennet.com/pdf/ETFFC02LED_install.pdf
