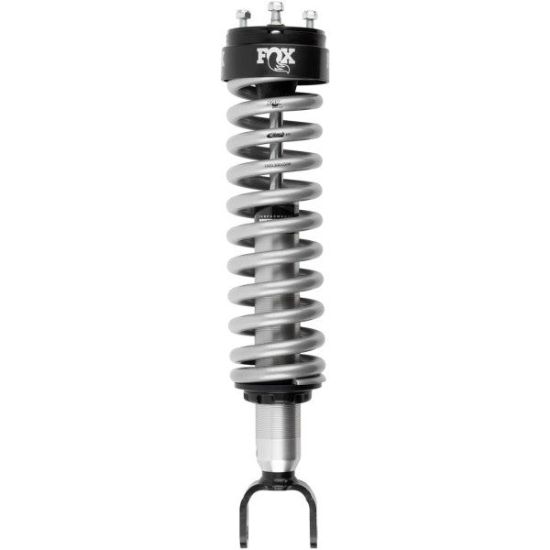

Dodge Ram 1500 09-24 Classic Shape, 2.0, IFP, 0-2", Stage 1, Front Coil-Over, Single

PERFORMANCE SERIES 2.0 COIL-OVER IFP SHOCK - ADJUSTABLE

The Performance Series 2.0 Coil-Over IFP Shock delivers advanced technology and top-tier features, offering exceptional off-road performance and on-road comfort in a hassle-free bolt-on package. Designed to improve ride quality, it features a metal impact extruded aluminum body that increases cooling capacity and resists rust, ensuring long-term durability. The internal reservoir with Internal Floating Piston (IFP) separates shock oil from high-pressure nitrogen gas, preventing oil aeration and delivering maximum performance with precision valving.

The shock is easy to install, requiring no modifications, and includes spring preload rings for adjusting ride height and preload, allowing for fine-tuning and optimal suspension travel. These shocks are compatible with both stock and lifted trucks that retain the factory shock mounting setup.

Key Features of Performance Series 2.0 Coil-Over IFP Shock

• Bolt-On Design: Installs easily without modifications, designed to level your truck from front to rear.
• Aluminum Body: Impact extruded, clear anodized 6061-T6 aluminum body dissipates heat faster than steel and resists rust.
• Internal Floating Piston (IFP): Prevents oil aeration by separating shock oil from high-pressure nitrogen, offering a comfortable and controlled ride.
• Spring Preload Adjustability: Spring preload rings allow for easy ride height and preload adjustments, optimizing your truck’s suspension.
• Race-Proven Damping Control: Race-developed high-flow piston with application-specific valving for predictable handling on the toughest terrain.
• Durable Components: Features black-anodized CNC machined 6061-T6 billet aluminum components for added strength and performance.

Technical Specifications

• Part Number: 983-02-050
• Series: Performance
• Travel: 5.39 inches
• Front Lift Height: 0-2 inches
• Body: 2.0” impact extruded, CNC machined, 6061-T6 clear anodized aluminum
• Body Plating: Clear-anodized for long-lasting durability
• Shaft: 5/8" hard chrome plated heat-treated alloy steel
• Piston: Race-developed high-flow piston
• Seals: Redundant sealing pack system with main seal, wiper seal, and scraper seal
• Bearings: Large diameter, heavy-duty spherical bearings
• Extended Length: 20.46 inches
• Compressed Length: 15.06 inches
• Top Mount: TM
• Bottom Mount: Clevis
• Fitment Notes: Compatible with trucks without Air Ride (Gas)
