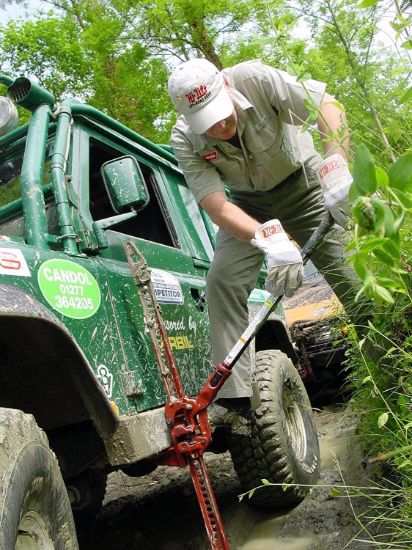

48"""" Red Hi-Lift Jack All-Cast

Hi-Lift® All-Cast Jack The Hi-Lift Jack Company offers the only all-cast jack manufactured in the world today. Our casting jack is manufactured from high yield and tensile strength iron castings, the same durable metal that we have used for over 100 years. All-Cast Construction. 7000lb (3175.14kg) Tested Capacity. Available in 42"", 48"", & 60"" Heights. (107, 122, & 152cm) Lifts, Winches, Clamps, & More. Most Durable Design. Specification HL-425 HL-485 HL-605 Size 42” (107 cm) 48” (122 cm) 60” (152 cm) Min. Lift Height 4.5"" (11.43 cm) 4.5"" (11.43 cm) 4.5"" (11.43 cm) Max. Lift Height 34"" (86.36 cm) 38.63"" (98.12 cm) 49.75"" (126.37 cm) Overall Height 46"" (116.84 cm) 50.75"" (128.91 cm) 61.75"" (156.85 cm) Width 5"" (12.7 cm) 5"" (12.7 cm) 5"" (12.7 cm) Depth 9.63"" (24.46 cm) 9.63"" (24.46 cm) 9.63"" (24.46 cm) Rated Load (RL) 4,660 lbs (2,113 kg) 4,660 lbs (2,113 kg) 4,660 lbs (2,113 kg) RL on upper 12"" (30.5cm) - - 2,660 lbs (1206 kg) Tested Load (TL) 7,000 lbs (3,175 kg) 7,000 lbs (3,175 kg) 7,000 lbs (3,175 kg) TL on upper 12"" (30.5cm) - - 4,000 lbs (1,814 kg) Winching Capacity 5,000 lbs (2,268 kg) 5,000 lbs (2,268 kg) 5,000 lbs (2,268 kg) Clamping Capacity 750 lbs (340 kg) 750 lbs (340 kg) 750 lbs (340 kg) Weight 27.78 lbs (12.6 kg) 28.16 lbs (12.77 kg) 31.31 lbs (14.2 kg)
